Siesta Daikin

3AMXF52A9 Siesta

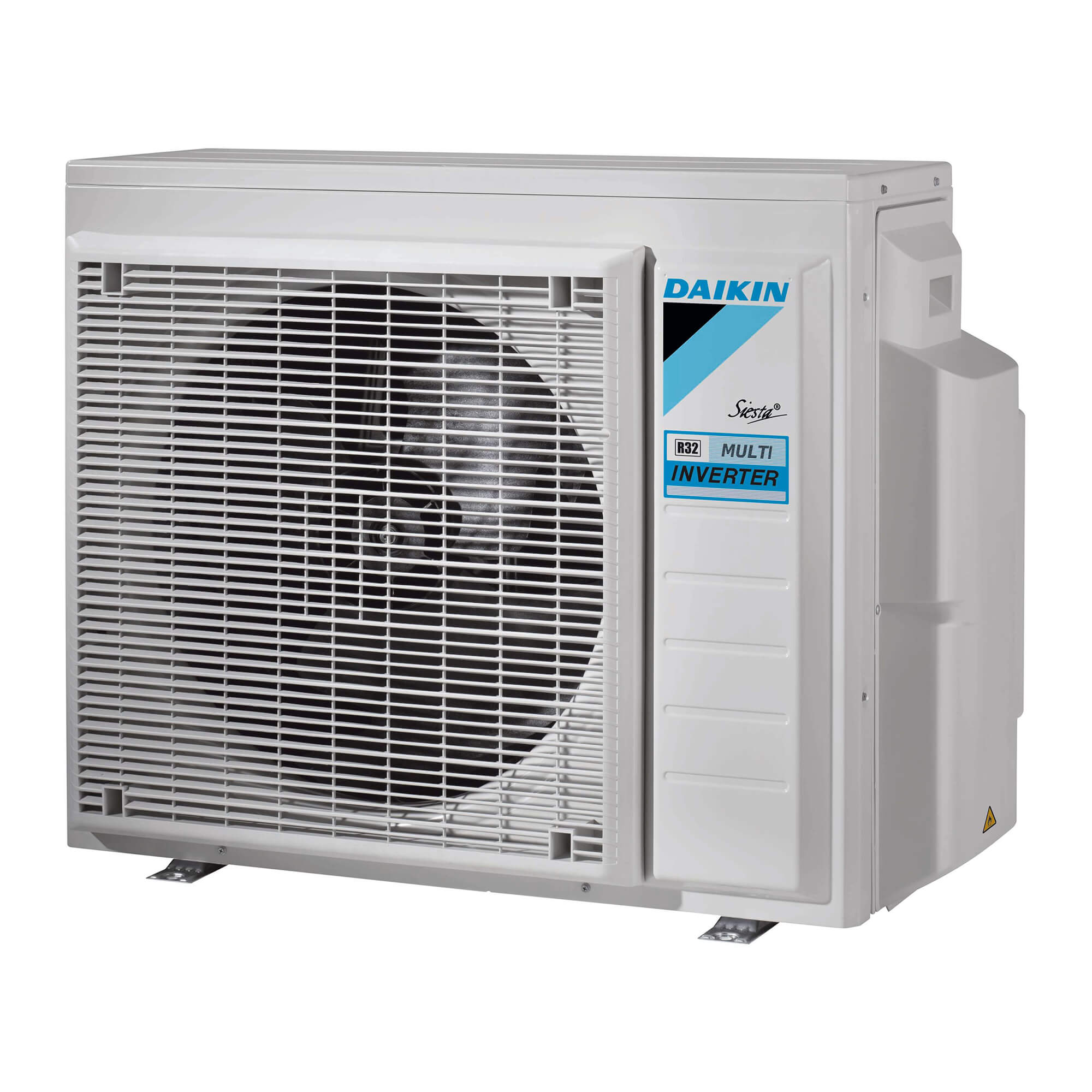

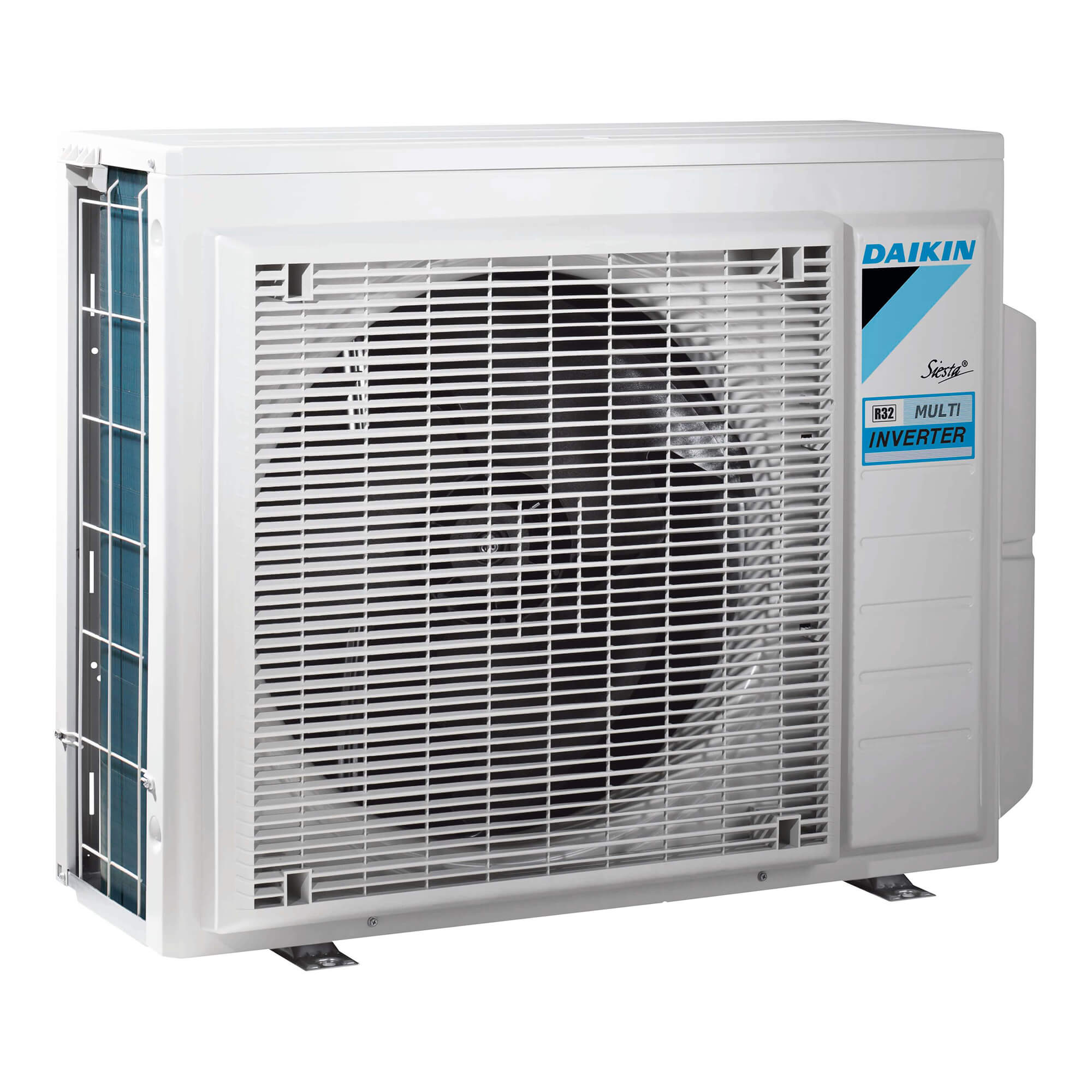

3AMXF52A9 Siesta outdoor inverter unit multi-split system

Cooling power
5.2 kW
Heating power
6.8 kW
Serviced area
43.3 m²
Number of connected indoor units
3
All characteristics
Price
On request
Send a request: the manager will select the configuration and send you a commercial offer.
In stock
Cooling power5.2 kW
Heating power6.8 kW
Serviced area43.3 m²
Block typeOutdoor
Number of connected indoor units3
Energy efficiency class (cooling)A+++
Energy efficiency class (load)A++
EER4.19
COP4.02
Dimensions (H×W×D)734×958×340 mm
Weight57 kg
Performance ControlInverter
Compressor typeRotary
Energy consumption (cooling)1.24 kW
Energy consumption (load)1.69 kW
Operating temperature range (cool)-10~46°C
Operating temperature range (heat)-15~24 °C
Sound power level59 dBA
Sound pressure level46 dBA
Power supply1~/50/220-240 (Phase/Hz/V)
RefrigerantR-32
Refrigerant charging1.8 kg
Liquid lines6.35 mm × 3
Gas lines9.5 mm / 12.7 mm × 2
Maximum distance between blocks (external - internal)25 m
Maximum height difference (inside - inside)7.5 m
Maximum height difference (external - internal)15 m
BrandDaikin
SeriesSiesta
Model3AMXF52A9
Guarantee3 years

3AMXF52A9 Siesta outdoor inverter unit multi-split system

Outdoor unit for Siesta series indoor units
● Seasonal efficiency values ​​up to A+++ in cooling mode and up to A++ in heating mode thanks to the use of the most modern technologies and intelligent systems;
● Up to 3 indoor units can be connected to one outdoor unit of the Siesta multi-split system; each indoor unit is controlled separately, and the units do not have to be installed simultaneously or in the same room. They operate simultaneously in the same heating or cooling mode;
● Choosing an R-32 system reduces the environmental impact by 68% compared to R-410A and directly reduces energy consumption due to its high energy efficiency;
● Possibility of connecting various indoor wall-mounted units;
● Outdoor units have a rotary compressor, which is famous for its low noise level and high energy saving rates.

Daikin Product Catalog
Technical data sheets, installation instructions and certificates are available upon request. You can download them in the admin panel - from the category (for the entire series) or from the product.

Installation is carried out by DC Engineering's own certified teams: engineer visit, selection of routes, commissioning and commissioning in compliance with the requirements of the manufacturer and SNiP.

Official Daikin service center: warranty up to 5 years, scheduled maintenance, diagnostics and repairs of any complexity, original spare parts from stock.
