Multi+ Daikin

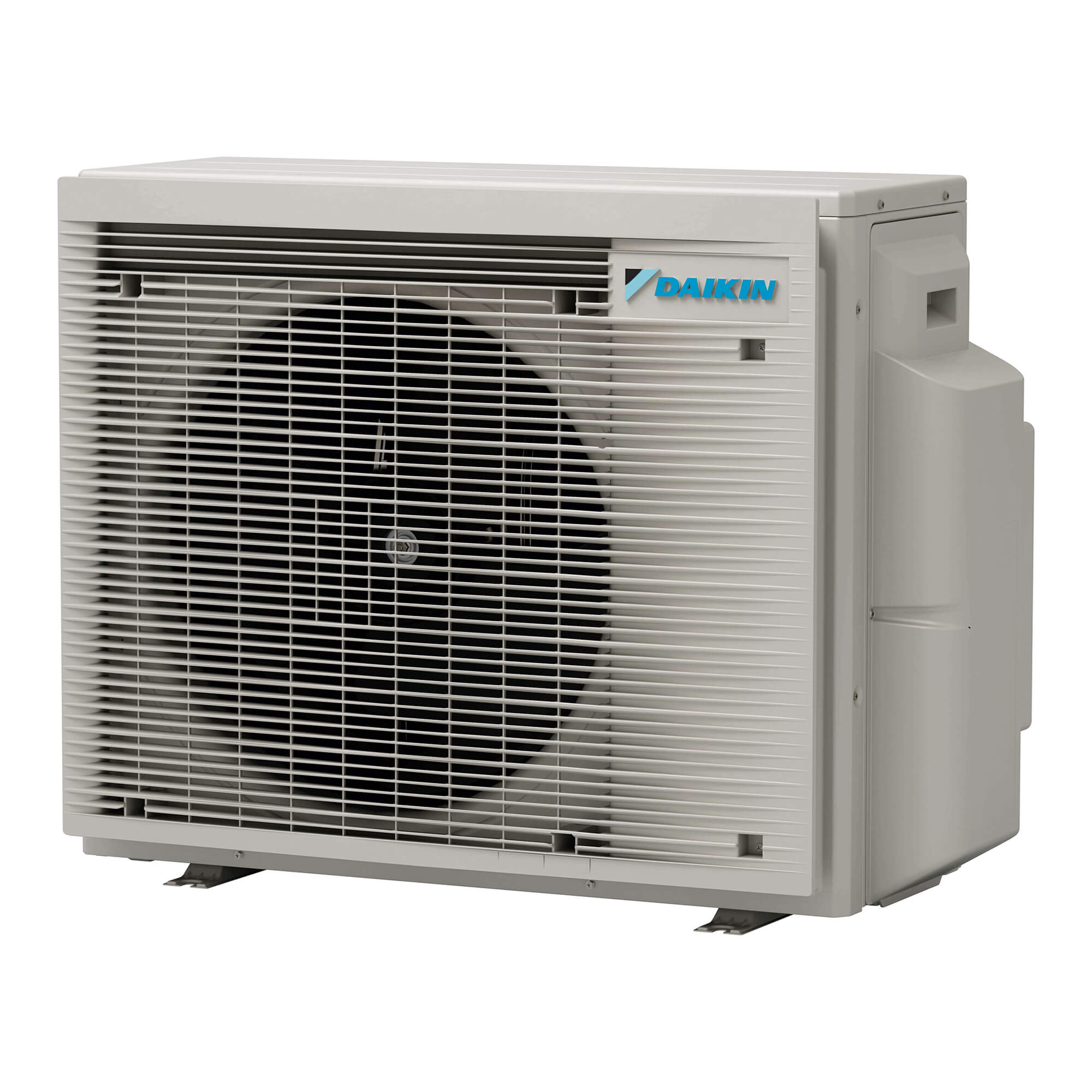

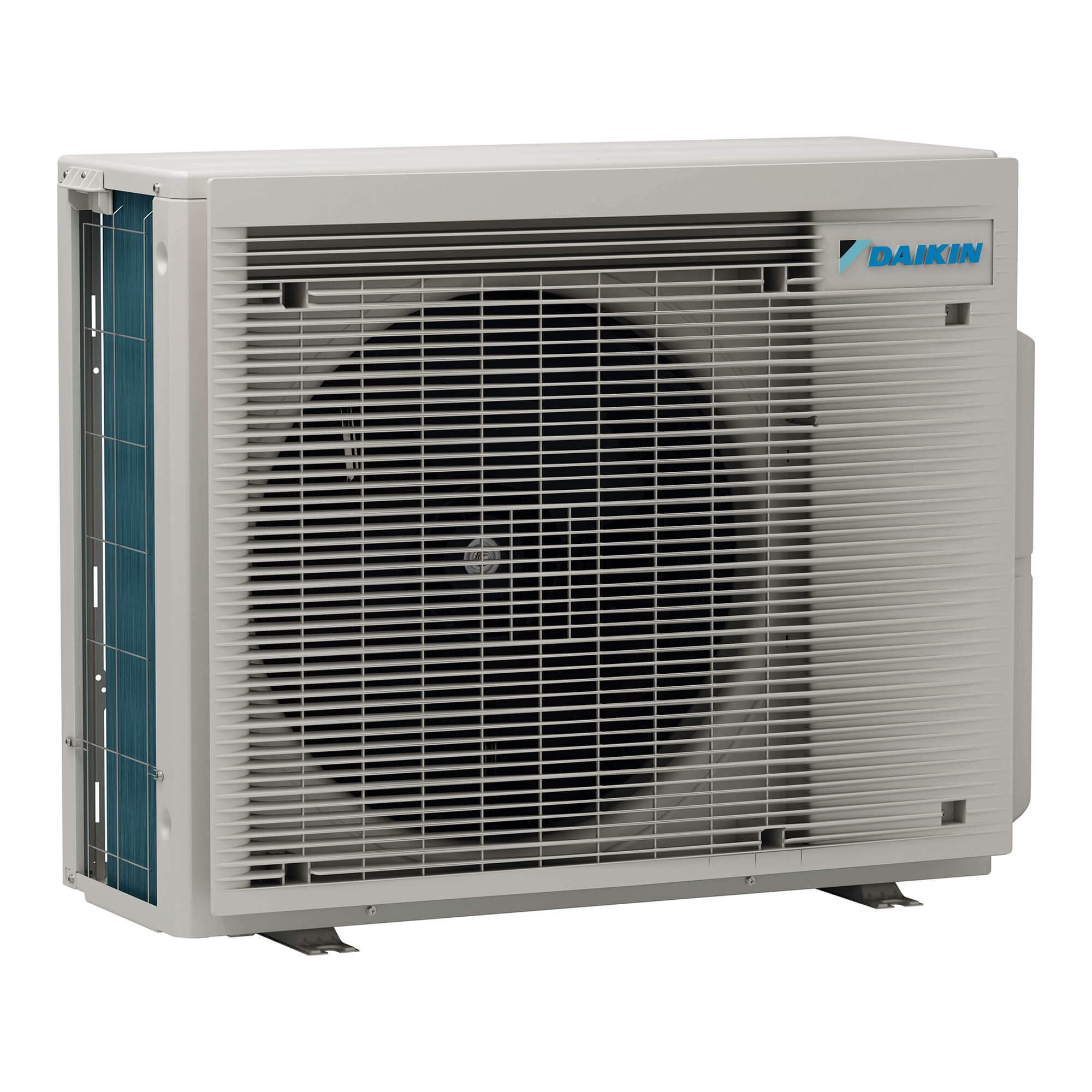

4MWXM52A9 Multi+

4MWXM52A9 Multi+ outdoor inverter unit for multi-split systems

Cooling power
5.2 kW
Heating power
6.8 kW
Serviced area
43.3 m²
Number of connected indoor units
3 + hot water tank
All characteristics
Price
On request
Send a request: the manager will select the configuration and send you a commercial offer.
In stock
Cooling power5.2 kW
Heating power6.8 kW
Serviced area43.3 m²
Block typeOutdoor
Number of connected indoor units3 + hot water tank
Energy efficiency class (cooling)A+++
Energy efficiency class (load)A++
EER4.73
COP4.36
Dimensions (H×W×D)734×974×401 mm
Weight60 kg
Performance ControlInverter
Compressor typeRotary
Energy consumption (cooling)1.1 kW
Energy consumption (load)1.56 kW
Operating temperature range (cool)-10~46°C
Operating temperature range (heat)-15~24 °C
Sound power level59 dBA
Sound pressure level46 dBA
Power supply1~/50/220-240 (Phase/Hz/V)
RefrigerantR-32
Refrigerant charging2.2 kg
Liquid lines6.35 mm × 4
Gas lines9.5 mm × 2 / 12.7 mm × 2
Maximum distance between blocks (external - internal)25 m
Maximum height difference (inside - inside)7.5 m
Maximum height difference (external - internal)15 m
BrandDaikin
SeriesMulti+
Model4MWXM52A9
Guarantee3 years

4MWXM52A9 Multi+ outdoor inverter unit for multi-split systems

Outdoor unit Multi+ series
● Up to 3 indoor units and 1 hot water tank can be connected to 1 outdoor unit of the multisystem;
● New designer outdoor unit;
● Seasonal efficiency values ​​up to A+++ in cooling mode and up to A++ in heating mode thanks to the use of the most modern technologies and intelligent systems;
● Up to 3 indoor units can be connected to one outdoor unit of a multi-split system; each indoor unit is controlled separately, and the units do not have to be installed simultaneously or in the same room;
● Choosing an R-32 system reduces the environmental impact by 68% compared to R-410A and directly reduces energy consumption due to its high energy efficiency;
● Possibility of connecting various indoor units: for example, wall-mounted units, cassette-type corner ceiling units, hidden-mounted ceiling units;
● Compatible with 89 and 118 liter hot water tanks;
● Outdoor units have an inverter rotary compressor, which is famous for its low noise level and high energy saving rates.
