RYMA-A Daikin
RYMA5A7Y1B

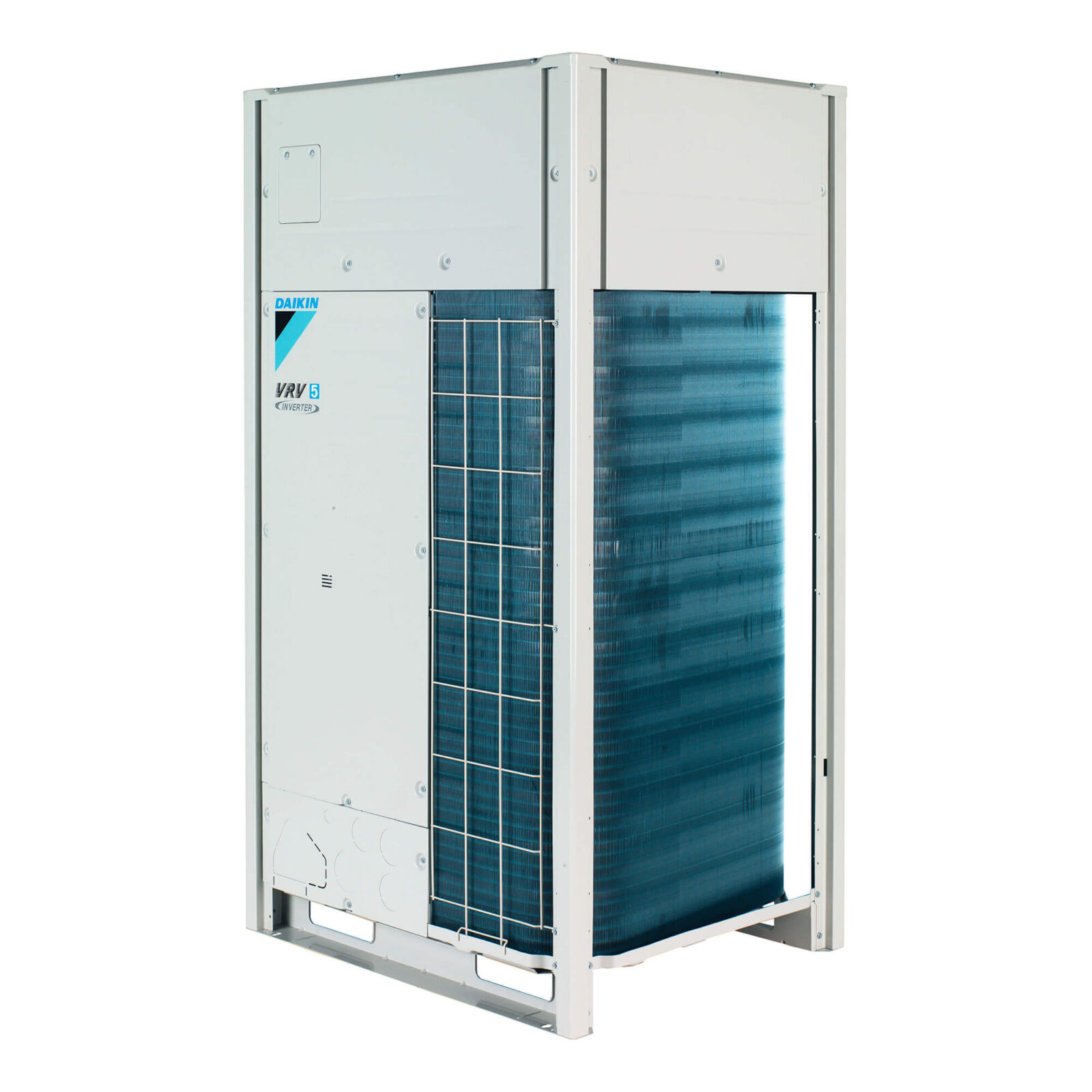

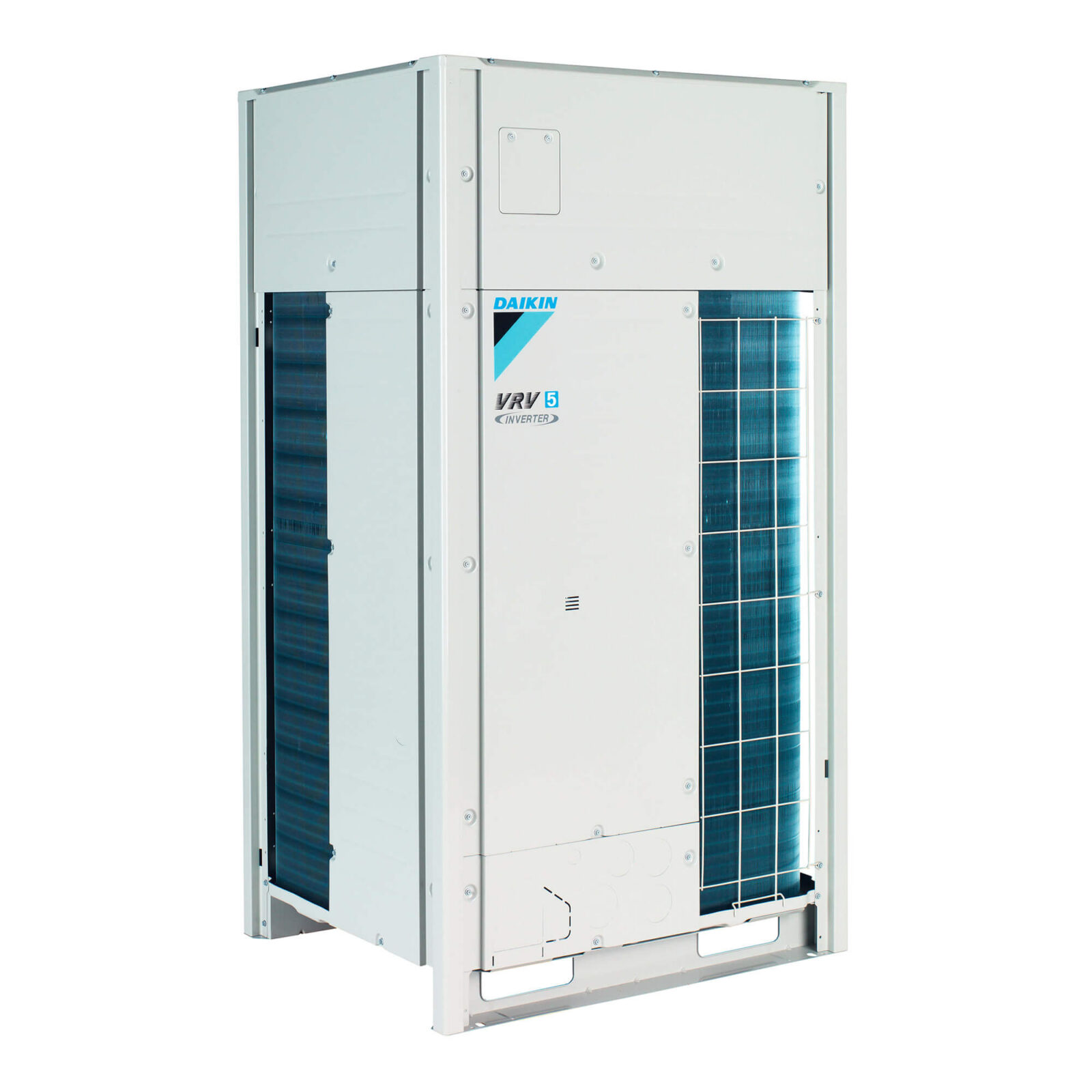

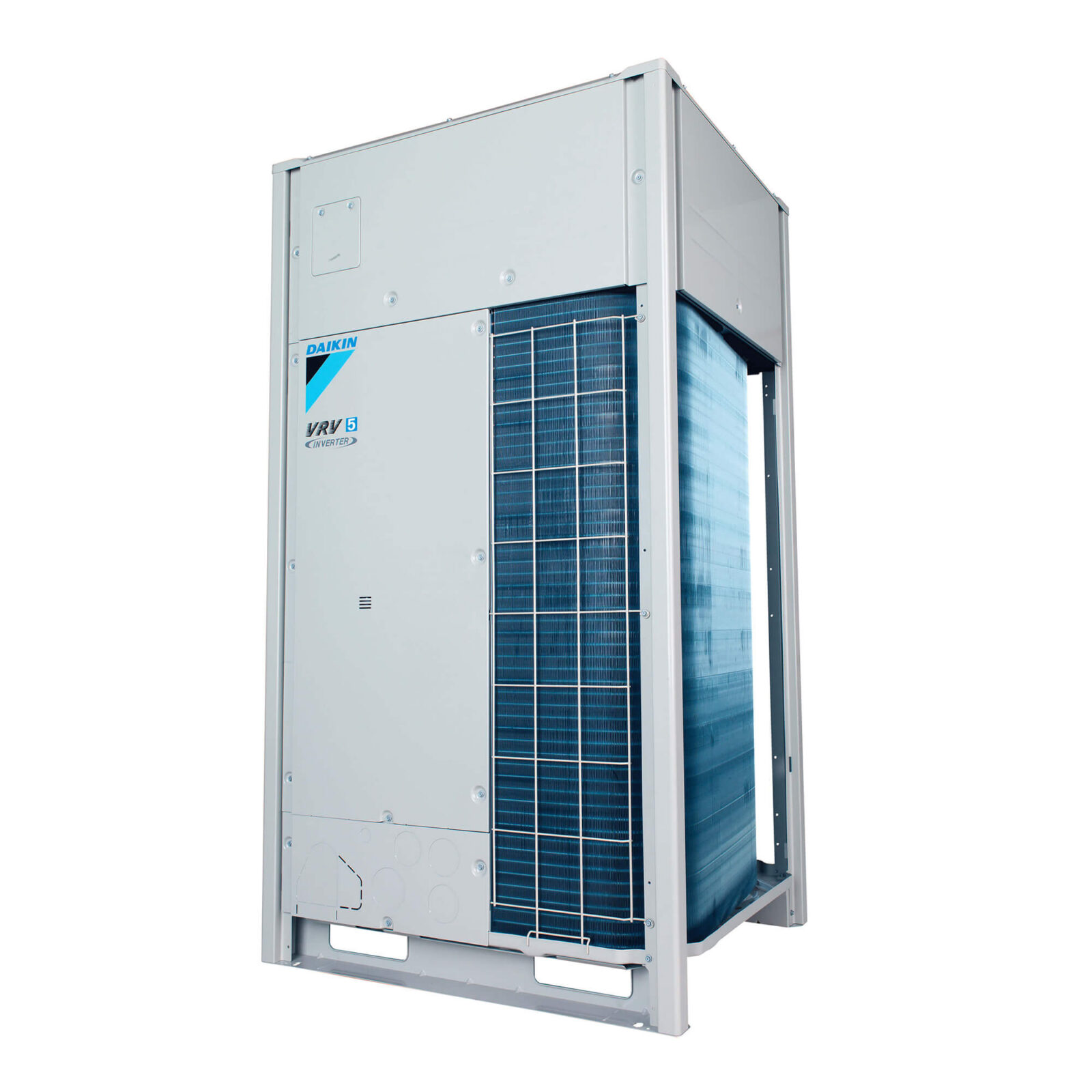

RYMA5A7Y1B – outdoor unit VRV 5 with heat pump and air condenser used for combinations
Operating mode
Cooling or heating
Cooling capacity
14 kW
Heating capacity
16 kW
Number of connected indoor units
64 units
Serviced area
116.7 m²
Price
On request
Send a request: the manager will select the configuration and send you a commercial offer.
In stock
Operating modeCooling or heating
Cooling capacity14 kW
Heating capacity16 kW
Performance5 HP
Serviced area116.7 m²
Block typeOutdoor
Number of connected indoor units64 units
Dimensions (H×W×D)1685×930×765 mm
Weight214 kg
Performance ControlInverter
Compressor typeSpiral
Condenser coolingAir
Operating temperature range (cool)-5~46°C
Operating temperature range (heat)-20~16°C
Sound power level (cool)78.3 dBA
Sound power level (load)79.4 dBA
Sound pressure level (cool)56.3 dBA
Sound pressure level (load)58.1 dBA
TechnologiesHeat pump
Power supply3N~/50/380 (Phase/Hz/V)
RefrigerantR-32
Refrigerant charging9 kg
Liquid pipe diameter9.52 mm
Gas pipe diameter (suction)19.1 mm
Maximum pipeline length1000 m
BrandDaikin
GenerationVRV 5
SeriesRYMA-A
ModelRYMA5A7Y1B
Guarantee5 years
RYMA5A7Y1B – outdoor unit VRV 5 with heat pump and air condenser used for combinations
● Heat pump model for multi-unit systems only;
● Used for combination with VRV 5 outdoor units RXYA-A series;
● Outdoor unit module with heat recovery VRV 5 for creating systems with power from 10 to 13 hp;
● Free combination of outdoor units according to installation space or efficiency requirements.
Daikin Product Catalog
Technical data sheets, installation instructions and certificates are available upon request. You can download them in the admin panel - from the category (for the entire series) or from the product.
Installation is carried out by DC Engineering's own certified teams: engineer visit, selection of routes, commissioning and commissioning in compliance with the requirements of the manufacturer and SNiP.
Official Daikin service center: warranty up to 5 years, scheduled maintenance, diagnostics and repairs of any complexity, original spare parts from stock.
