RXYSA10AMY1B

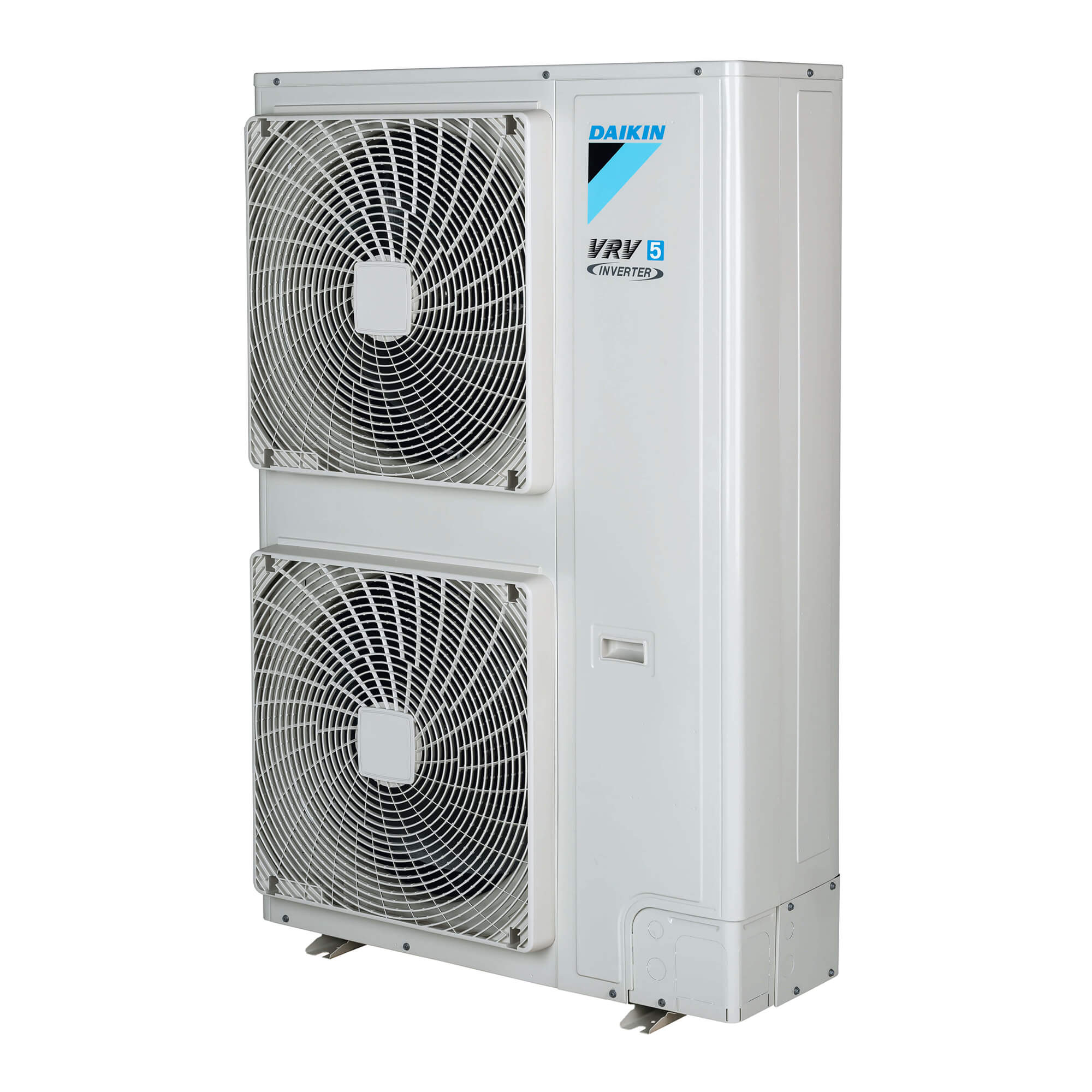

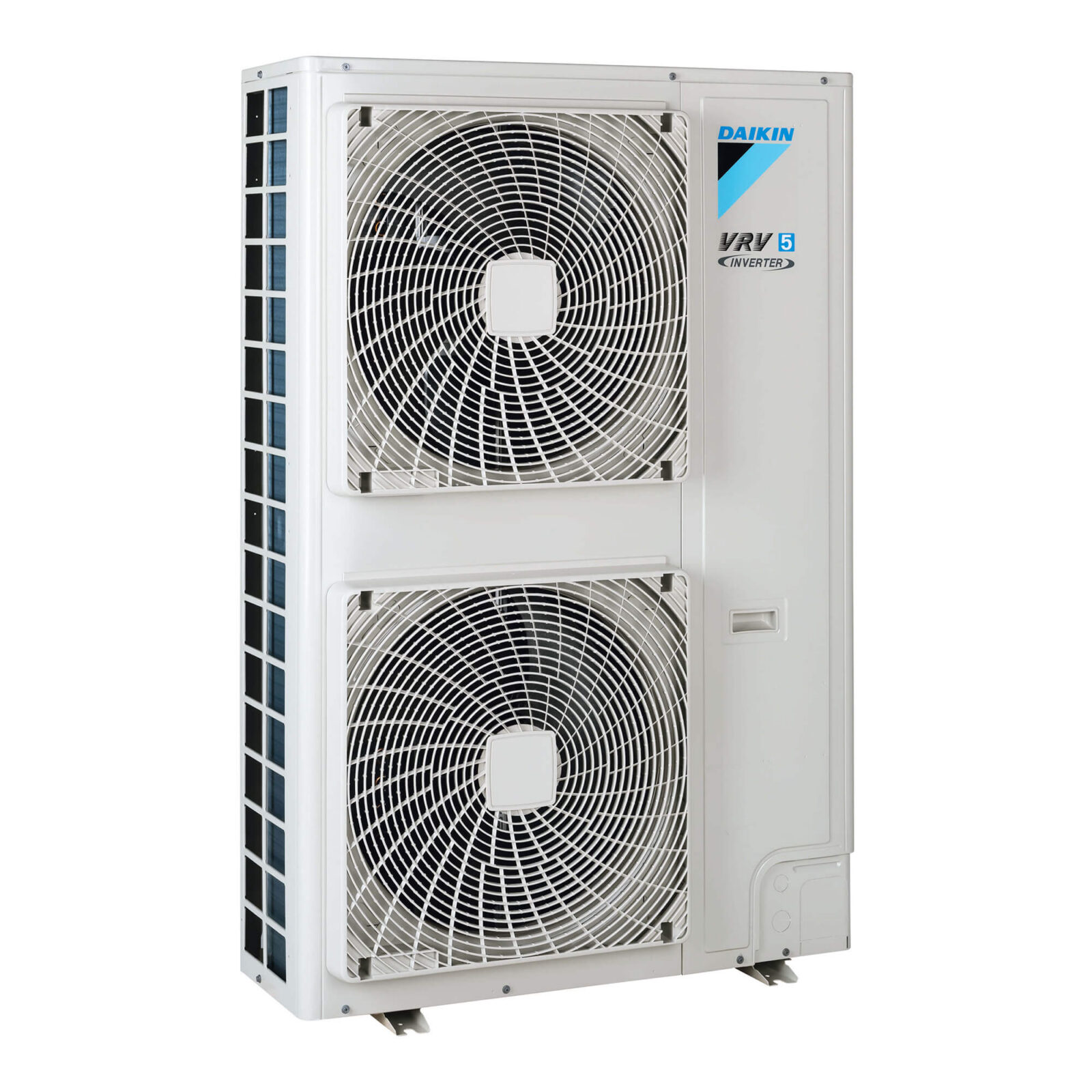

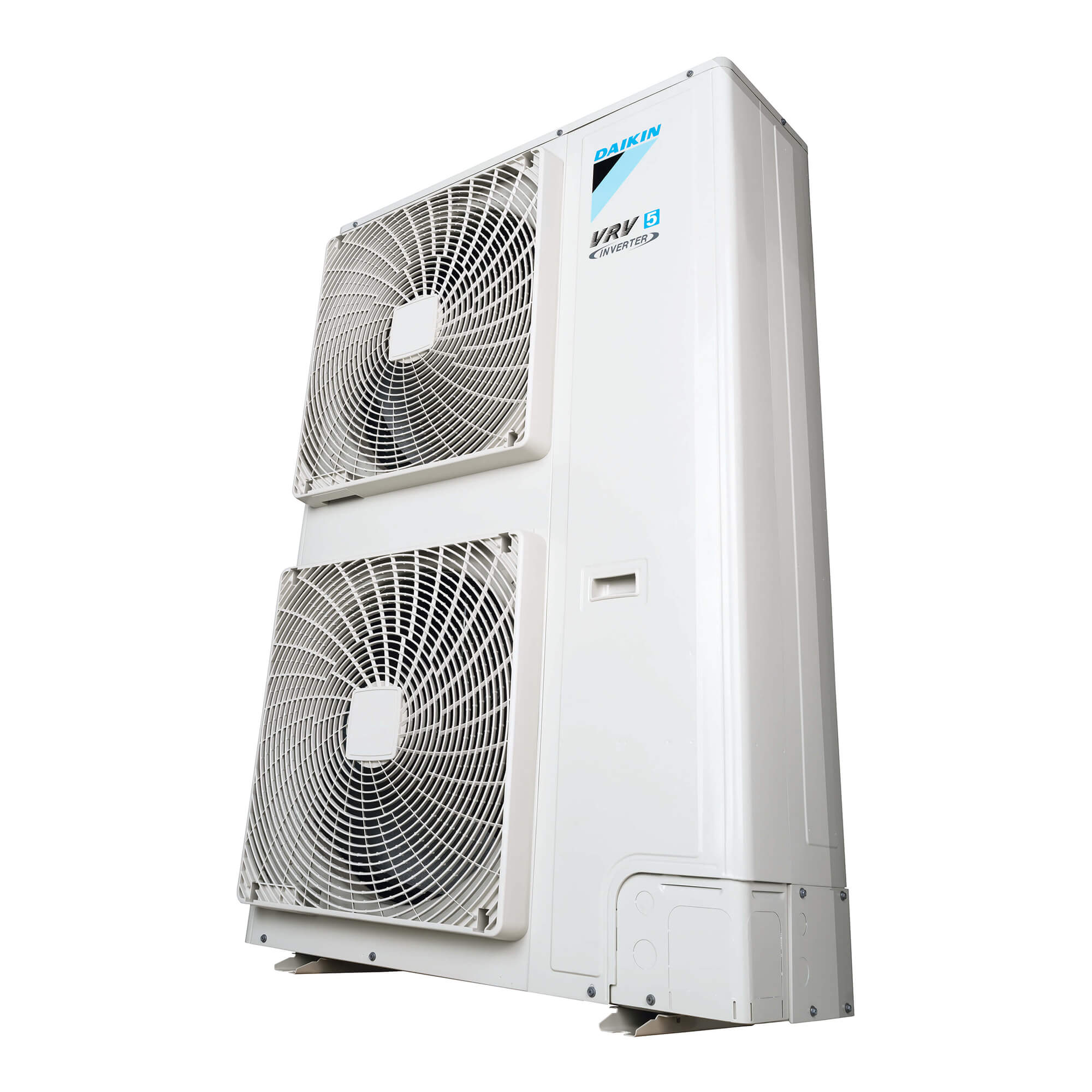

RXYSA10AMY1B – mini VRV 5 outdoor unit with heat pump and air condenser
Operating mode
Cooling or heating
Cooling capacity
28 kW
Heating capacity
28 kW
Number of connected indoor units
32 units
Serviced area
233.3 m²
Price
92,612,000 sum
The indicated price is approximate. For the current price, send a request or contact the manager.
In stock
Operating modeCooling or heating
Cooling capacity28 kW
Heating capacity28 kW
Performance10 HP
Serviced area233.3 m²
Block typeOutdoor
Number of connected indoor units32 units
EER2.94
COP3.83
Dimensions (H×W×D)1615×940×460 mm
Weight163 kg
Performance ControlInverter
Compressor typeRotary
Condenser coolingAir
Energy consumption (cooling)9.5 kW
Energy consumption (load)7.3 kW
Operating temperature range (cool)-5~52°C
Operating temperature range (heat)-20~15.5 °C
Sound power level (cool)74 dBA
Sound power level (load)74 dBA
Sound pressure level (cool)57 dBA
Sound pressure level (load)58 dBA
TechnologiesHeat pump
Power supply3N~/50/380 (Phase/Hz/V)
RefrigerantR-32
Refrigerant charging4.73 kg
Liquid pipe diameter9.52 mm
Gas pipe diameter (suction)19.1 mm
Maximum pipeline length300 m
BrandDaikin
GenerationVRV 5
SeriesRXYSA-AY1
ModelRXYSA10AMY1B
Guarantee5 years
RXYSA10AMY1B – mini VRV 5 outdoor unit with heat pump and air condenser
Lower CO₂ equivalent and market-leading versatility
● Heat pump model for single-block or multi-block systems;
● Reduced CO₂ equivalent due to the use of R-32 refrigerant with a lower GWP and lower required load;
● Maximum sustainability throughout the service life thanks to world-leading real seasonal efficiency;
● Market-oriented ease of service and handling thanks to a wide access area, 7-segment display and additional handle;
● Shîrudo technology allows you to solve the problems of installing equipment in small spaces without taking additional measures;
● Specially designed R-32 indoor units for low noise and maximum efficiency.
Daikin Product Catalog
Technical data sheets, installation instructions and certificates are available upon request. You can download them in the admin panel - from the category (for the entire series) or from the product.
Installation is carried out by DC Engineering's own certified teams: engineer visit, selection of routes, commissioning and commissioning in compliance with the requirements of the manufacturer and SNiP.
Official Daikin service center: warranty up to 5 years, scheduled maintenance, diagnostics and repairs of any complexity, original spare parts from stock.
